Spark Plug Analysis

Appearance of a used spark plug tells a lot about the operating conditions of the engine and the plug. Thus the analysis of a plug plays

an important role in the maintenance of a car.

...
See more less

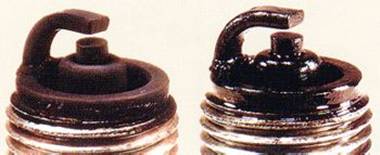

1 : Carbon Fouling

Carbon fouling is the most common spark plug related failure, but is not a spark plug fault. Carbon deposits are conductive, and as they accumulate along the

insulator nose they reduce the insulation resistance of the spark plug. As electricity always takes the path of least resistance a misfire may occur if a significant amount of carbon deposits accumulate. A spark will not form as electricity can track along the conductive carbon deposits to the metal shell (as shown in red below) rather than forming a spark across the electrode gap which has a very high resistance.

As mentioned the optimal operating temperature range for a spark plug is 450 – 870°C, 450°C is the spark plug self cleaning temperature at which point carbon deposits will burn off. However, if too cold a spark plug is used and this temperature is not achieved carbon fouling will occur. This is the most common reason for carbon fouling.



...
See more less

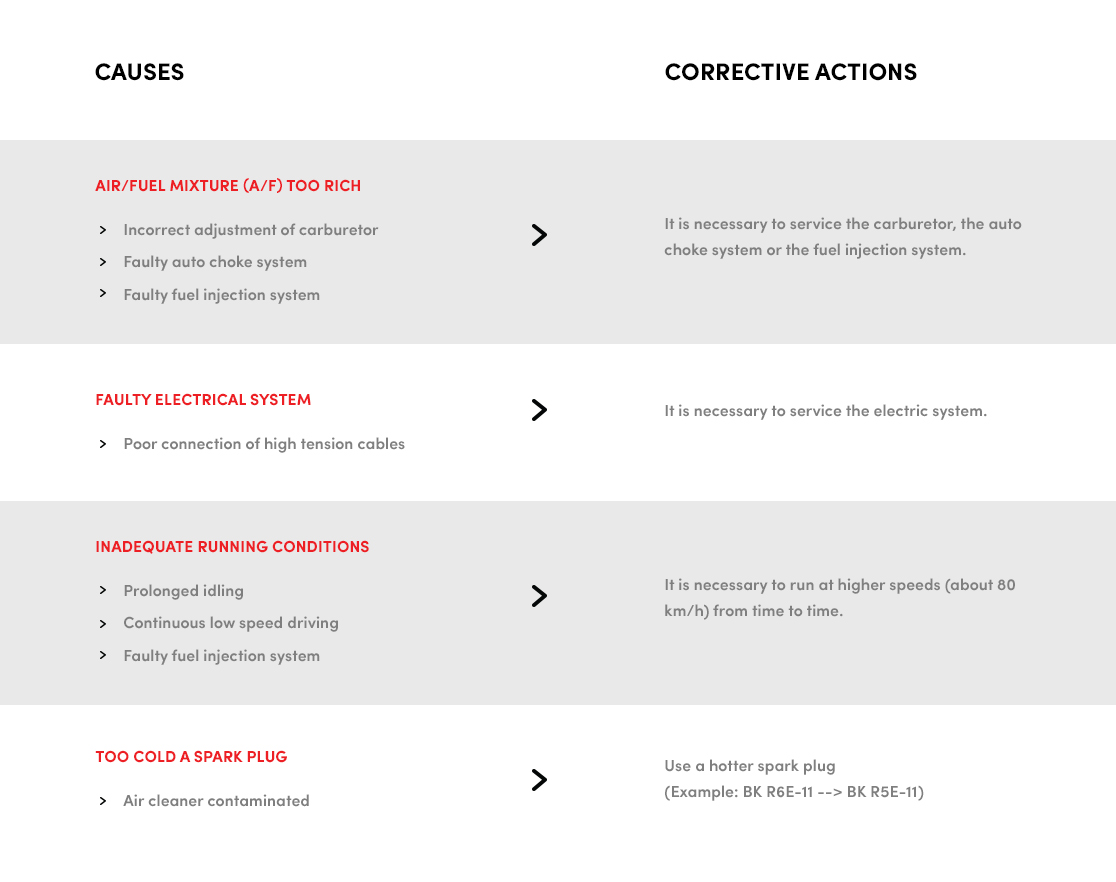

Other causes for carbon fouling include:

causes-corrective
As carbon builds up, the insulation resistance of the spark plug drops and the voltage generated by the ignition coil is reduced. When the generated voltage becomes lower than the required voltage of a spark plug (the voltage needed to cause sparks at the spark gap), sparking is suppressed and mis-firing occurs.

2 : Terminal Nut Wear

Excessive vibration of the engine may lead to abnormal wear of the terminal nut. As a result, the cover may come off the plug.

For vehicles whose engines vibrate more than others, such as watercraft and snowmobiles, solid post terminal plugs with excellent vibration resistance and wear resistance are recommended.

...
See more less

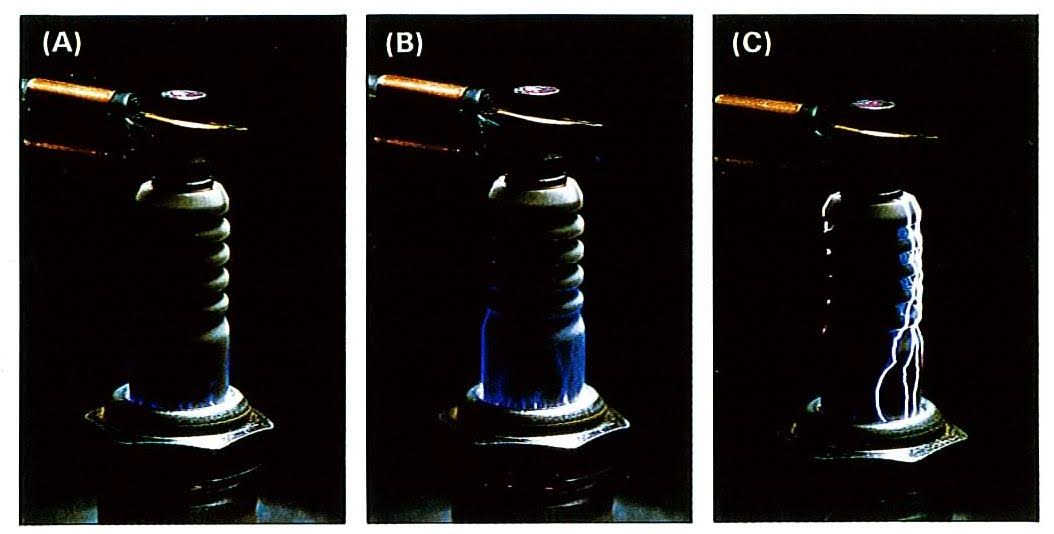

3 : Flash-Over – Spark leakage from terminal to metal shell

Flash-Over When the spark gap has widened due to wear of the electrodes, a higher voltage is required. The

flash-over occurs when the required voltage between the plug electrodes is higher than the voltage flying between the terminal and metal shell. The plug cable material hardens as time elapses, which in turn reduces the tightness of the cover and insulator, lowering the preventive power for flash-over.

As a higher voltage is required for a turbo charged engine, flash-over is more likely to occur. It is important to recognise that a plug cable is a consumable part which needs to be replaced periodically. When there is no spark after washing the car or the engine room, check whether water has entered the plug cover or not.

...
See more less

4 : Corona Stain

A removed spark plug sometimes has discolouration around the insulator surface which looks like gases have leaked between the insulator and the shell.

It is not

a stain caused by gas leakage but by corona discharge (Carona Stain).

Mechanism of corona discharge

The high voltage applied to the spark gap is also applied to the area between the centre electrode and the metal shell, causing an insulation breakdown of the air at the gap (a) between the insulator and the metal shell. The phenomena is called a corona discharge. The generated carona discharge develops toward the terminal nut. This last process is the pale blue carona discharge that is observed at night.

...
See more less

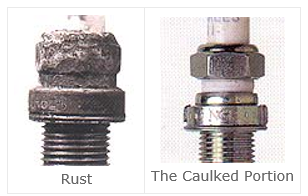

5 : Metal shell – Rust, breakage at caulked portion

When water has entered the plug hole due to water resistance of the plug cover or, in the case

of a motorcycle, when water has accumulated due to the inadequate draining through the plug hole, the metal shell may rust.

The rusting of the metal shell causes no deterioration of the function of the spark plug. Note, however, that water inside the cover may prevent sparks from being generated.

If the plug is forced to remove when the returning torque is abnormally high due to some causes such as plug thread seizure, the plug may break at the caulked portion of the metal shell.

When returning torque is high, the engine should be first warmed up. Then, by spraying penetrating liquid around the plug thread and leaving it for a while, the plug can sometimes be removed more easily.

...
See more less

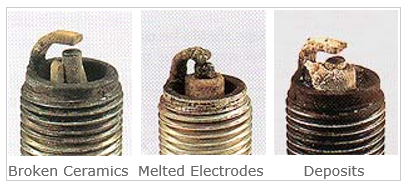

6 : Firing End – Broken ceramics, melted electrodes, deposits

When the firing end of the plug has overheated, the ceramics may break or the electrodes may melt. Under usual

engine condition, the plug does not overheat. Note, however, that it gets extremely hot in the case of abnormal combustion (ex. high – speed knocking, pre – ignition).

When the A – F setting is lean due to a faulty fuel system, the combustion temperature may rise, resulting in abnormal combustion. The engines cooling system may be faulty. When the spark timing is too early, the combustion temperature may rise, resulting in abnormal combustion. When deposits (generating from combustion) are accumulated in the combustion chamber, the combustion temperature may rise, resulting in abnormal combustion.When the firing end of the plug has overheated, the ceramics may break or the electrodes may melt. Under usual engine condition, the plug does not overheat. Note, however, that it gets extremely hot in the case of abnormal combustion (ex. high – speed knocking, pre – ignition).

When deposits have accumulated on the firing end of the plug, deposits may overheat, causing abnormal combustion. Especially in a two – cycle engine, oil gets burned and remains in the combustion chamber as deposits, accumulating on the plug as well. It is necessary to remove these deposits periodically.

In engines that consume larger amounts of oil, oil may enter the combustion chamber. It is necessary to chec k the amount of deposits during inspection of the plug. Burning of oil can also be detected by visible white exhaust gas emitted from the tail pipe.

...
See more less

7 : Dry and wet fouling

Wet fouling is fundamentally similar to carbon fouling. Although the root cause may vary due to a number of reasons, in essence the insulation resistance is reduced allowing a spark to track along the insulator nose and earth to the metal shell rather than forming a spark across the electrode gap as desired. Please see 1. Carbon Fouling

8: Insulator – Breakage at the corrugation and caulked portion

When removing or installing the plug, the plug wrench may slip or be tilted and may hit the corrugation

of the plug against the inside, breaking the insulator. Depending on the type of plug wrench, the plug may break at the caulked portion of the metal shell. This may not be noticeable from the outside appearance.

Slipped wrench leaves a mark on the hexagonal portion of the metal shell. A plug wrench with a definite hexagonal shape should be used. A rounded or loose wrench should be either avoided or used with special care.

...
See more less

9: Under or over tightening

When the plug has not been tightened enough, the combustion gas leaks out the thread portion. This reduces the radiation of the plug, causing

the metal shell to be heated, resulting in discolouration of the metal shell plating. If the metal shell continues to overheat the plug temperature may rise and abnormal combustion may result. When the plug has been tightened too much the thread neck portion of the metal shell will be lengthened. When the threaded neck portion is lengthened, the insulator and metal will not seal tight enough, causing the combustion gas to leak. When the gas continues to leak, the plug will be overheated and abnormal combustion may result. The plug should be tightened to the following recommended torques and turning angles.

When the plug is tightened too much the metal shell thread neck may be broken at around the first to second thread.

The plugs with smaller diameter portions, the D (12 mm) or C (10 mm) types thread neck portion is not very strong. Observe the recommended torque and turning angle and tighten with special care.

...
See more less

10 : Plug socket troubles

Damage to spark plugs during installation can easily occur and will oftern result in an intermittent misfire or no spark at all. Care must

be taken during installation that the spark plug socket is not slanted and does not slip causing insulator breakage (See Figure 1). Internal damage can still occur without the insulator actually breaking. Any horizontal force can either bend the terminal post internally or result in internal cracking of the insulator.

To avoid plug damage the following qualities are required in a wrench (See Figure 2);

That it fits the spark plug “hex” properly. 2. The inner space must be large enough to avoid contact with the insulator. 3. The spark plug socket must completely cover the “hex” portion of the metal shell. 4. A hexagonal socket is preferable as it is less likely to slip than a twelve point star type
...
See more less

11 : Examples of problems caused by excessively over long periods of use

Deposits accumulated on the firing end may induce abnormal combustion (pre-ignition), causing problems that include melting

of the electrodes.

...
See more less

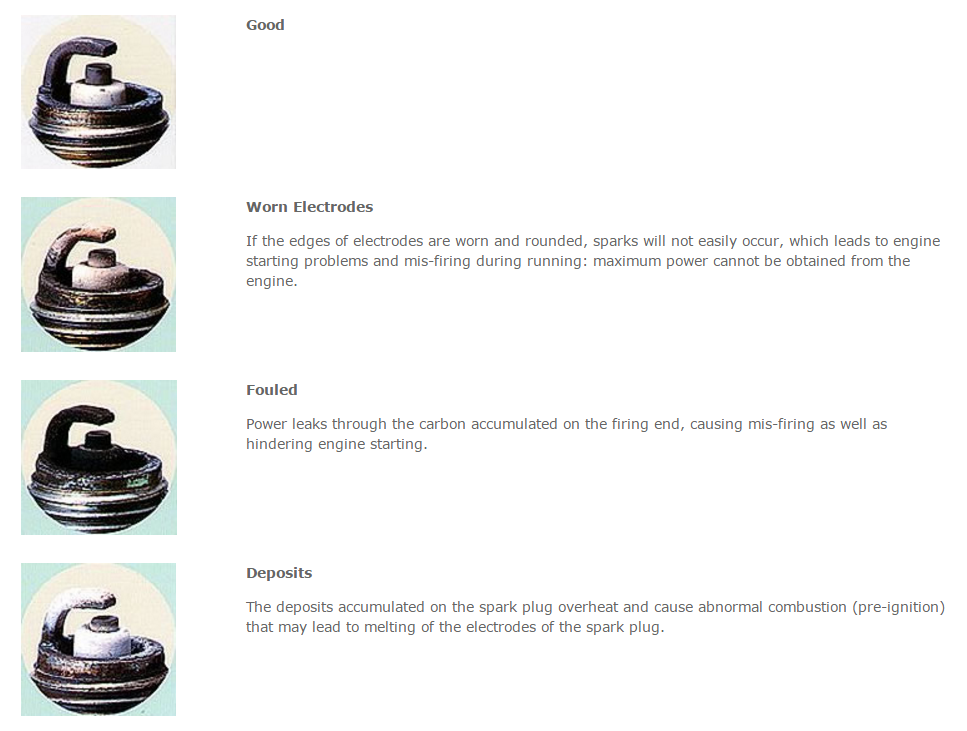

Why is the firing end appearance of a spark plug important?

Because the Firing end appearance reflects the suitability of the spark plug as well as the condition of

the engine. There are three basic criteria: good, fouled, and overheated. The firing end appearance also depends on the spark plug tip temperature.

Self Cleaning Temperature

The boarder-line between the fouling and optimum operating regions (450 degrees Celsius) is called the spark plug self cleaning temperature. It is at this temperature that the deposits accumulated are burnt off.

...
See more less

What is spark plug fouling?

It is a phenomenon by which carbon attached to the firing end causes electrical leakage that leads to mis-firing.

As the high voltage generated by the ignition coil leaks away through the carbon, mis-firing may occur and cause running and starting difficulties.

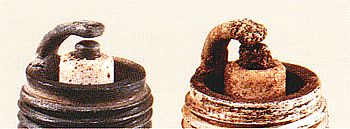

What is spark plug overheating?

overheat

Prolonged overheating may induce abnormal combustion (pre-ignition), resulting in melting of the spark plug electrodes.

Overheated spark plugs have a white insulator surface at the firing end speckled deposits. Electrode melting represents excessive overheating. When the spark plug temperature exceeds 870°C, the firing end serves as a heat source before sparking and induces abnormal combustion (pre-ignition), possibly damaging the piston.

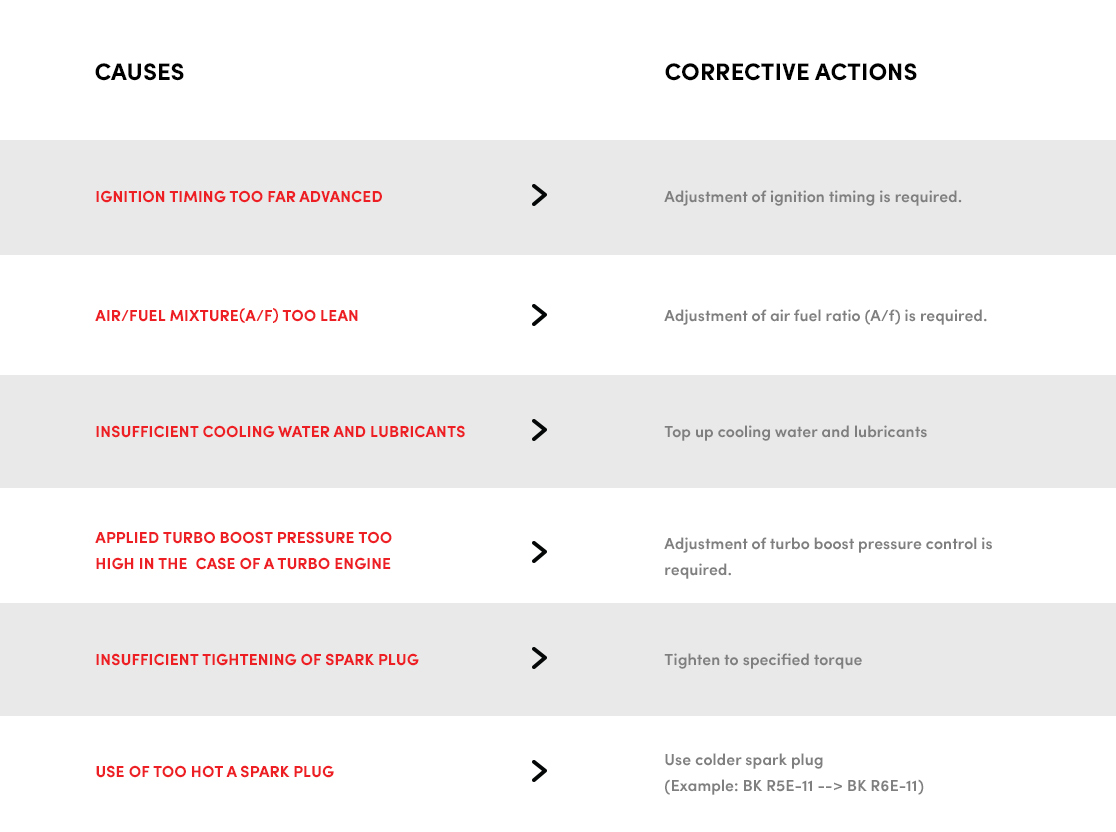

Causes of overheating and corrective actions

causes-corrective-2

What is lead fouling?

Lead deposits accumulated on the spark plug firing end help electricity to leak away and result in mis-firing.

When the lead contained in gasoline as an octane enhancer, adheres as the firing end of the spark plug, the high voltage generated by the ignition leaks through the lead deposits and causes mis-firing during acceleration. This problem often takes 2,000 ~ 3,000 km (1,200 ~ 1,800 miles) to become apparent.

lead-fouling

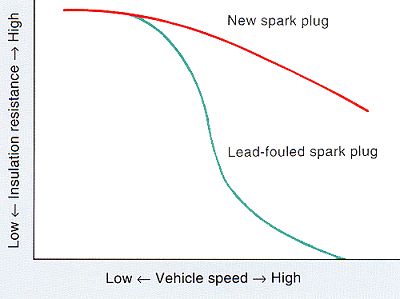

Insulation resistance of a spark plug vs. vehicle speed.

Lead fouling does not appear during starting or low speed running. On the other hand, mis-firing occurs when accelerating from the middle speed range since the insulation resistance of the spark plug drops quickly.

vehicle-speed

Better selection of spark plugs.

Use hotter type (Example: BP6ES – BP5ES)
Use projected insulator nose type (Example: B6ES – BP6ES)
